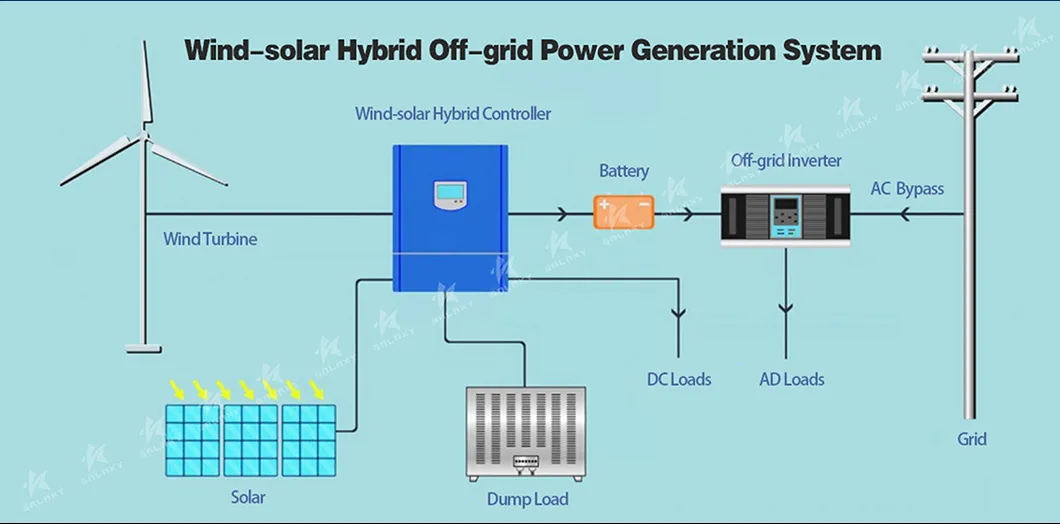

The wind and solar hybrid power generation system is mainly composed of wind turbine, solar photovoltaic battery pack, controller, battery, inverter, AC and DC loads and other parts. The system is a composite renewable energy power generation system integrating wind energy, solar energy and storage battery and other energy generation technologies and system intelligent control technology.

(1) Wind power generation part is to use wind turbines to convert wind energy into mechanical energy, through the wind generator to convert mechanical energy into electrical energy, and then through the controller to charge the battery, through the inverter to the load power supply;.

(2) The photovoltaic power generation part utilizes the photovoltaic effect of solar panels to convert light energy into electrical energy, and then charges the batteries, and then converts the direct current into alternating current through the inverter to supply power to the loads.

(3) The inverter system turns the DC power in the battery into standard 220v AC power to ensure the normal use of AC power load equipment. At the same time, it also has the function of automatic voltage stabilization, which can improve the power supply quality of the wind and solar hybrid power generation system.

(4) The control part constantly switches and adjusts the working state of the battery pack according to the changes of sunshine intensity, wind power and load: On the one hand, the adjusted power is directly sent to DC or AC loads. On the other hand, the excess power is sent to the battery bank for storage. When the power generation can not meet the needs of the load, the controller sends the power of the battery to the load, which ensures the continuity and stability of the whole system.

(5) The battery part consists of multiple batteries, which play two roles of energy regulation and load balancing in the system at the same time. It converts the electrical energy output from the wind power generation system and photovoltaic power generation system into chemical energy and stores it for use when the power supply is insufficient.

(1) wind turbines alone supplying power to the load; and

(2) The photovoltaic system alone supplies power to the load; (3) The wind turbine and the photovoltaic system alone supply power to the load.

(3) Wind turbines and photovoltaic power generation system jointly supply power to the load.

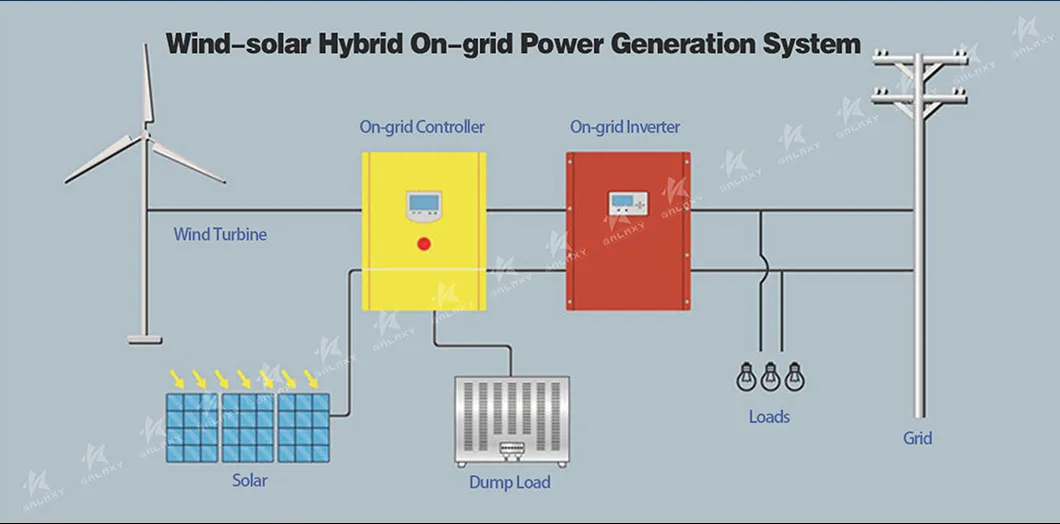

Its mode of operation is at night and rainy days without sunshine by the wind power generation system will wind energy conversion output power, or in the solar radiation by the photovoltaic power generation system will solar energy conversion output power, or in both the wind and the sun at the same time both play a role in converting the output of power, through the DC convergence box centralized into the DC power distribution cabinet, by the grid-connected inverter inverter into alternating current to supply the building's own loads, excess or insufficient power through the connection to the grid, the power supply to the loads. The excess or insufficient power is regulated by connecting to the grid to realize the function of all-weather power generation, which is more economical, scientific and practical than using wind turbine and solar energy alone.

(1) The systems are independent of each other and can be controlled by themselves, avoiding large-scale power outages and providing high security.

(2) Make up for the lack of stability of the power grid, continue to supply power in the event of an accident, and become an important and indispensable supplement to the centralized power supply.

(3) The quality and performance of regional power can be monitored in real time, which is very suitable for supplying power to the residents of rural, pastoral and mountainous areas, developing large, medium and small cities or commercial areas, and greatly reduces the pressure on environmental protection.

(4) Low or even no transmission and distribution losses, no need to build distribution stations, reduce or avoid additional transmission and distribution costs, low civil construction and installation costs.

(5) Good peak shifting performance and simple operation; and

(6) Fast start/stop due to fewer systems involved in operation, easy to realize full automation.

Wind generator is the conversion of wind energy into mechanical energy first and electric energy afterwards. Wind generator is pollution free and far away from noise. Wind generator is generally applicable to the area which has good condition but is far away from the power grid, or the power grid is not normal. The power and quantity of wind turbines are selected according to the actual demand.

It suitable for Wind & Solar Hybrid System and Solar Energy System. The power and quantity of solar panels are selected according to the actual demand.

MPPT constant voltage system and brake system. Emergency stop switch. Wind power grid-tied system.

MPPT included ,and 30 points settable. RS485 monitoring mode optional. Easy installation.

Wind generator is the conversion of wind energy into mechanical energy first and electric energy afterwards. Wind generator is pollution free and far away from noise. Wind generator is generally applicable to the area which has good condition but is far away from the power grid, or the power grid is not normal. The power and quantity of wind turbines are selected according to the actual demand.

It suitable for Wind & Solar Hybrid System and Solar Energy System. The power and quantity of solar panels are selected according to the actual demand.

Can be applied to on-grid system. MPPT power curve settable. Complete protection functions. Standard MODBUS protocol optional.

Pure sine wave output. Low output harmonic distortion (THDs3%). Complete isolation-type inverter technology. Wide input voltage range. AC by-pass function.

Valve regulated sealed gel battery is a new type of high energy battery developed with contemporary advanced technology. The product is designed to have a float life of more than 8 years.

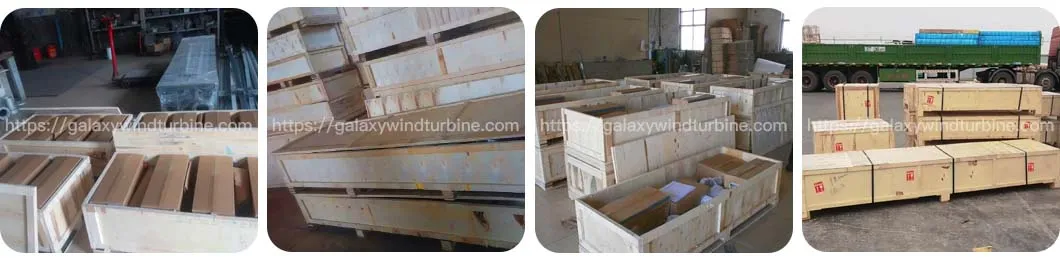

• 1. Wind turbines use an inner foam layer to protect the outer plywood box.
• 2. Foam-packed towers only .
• 3. Controller inverters use inner carton outer plywood box.
• 4. Please refer to our sales instruction for package size and weight.
• 5. Sea freight consolidation or air freight.

If you have any requirements for packing and transportation, please let our sales staff know and we will do it according to your requirements.
